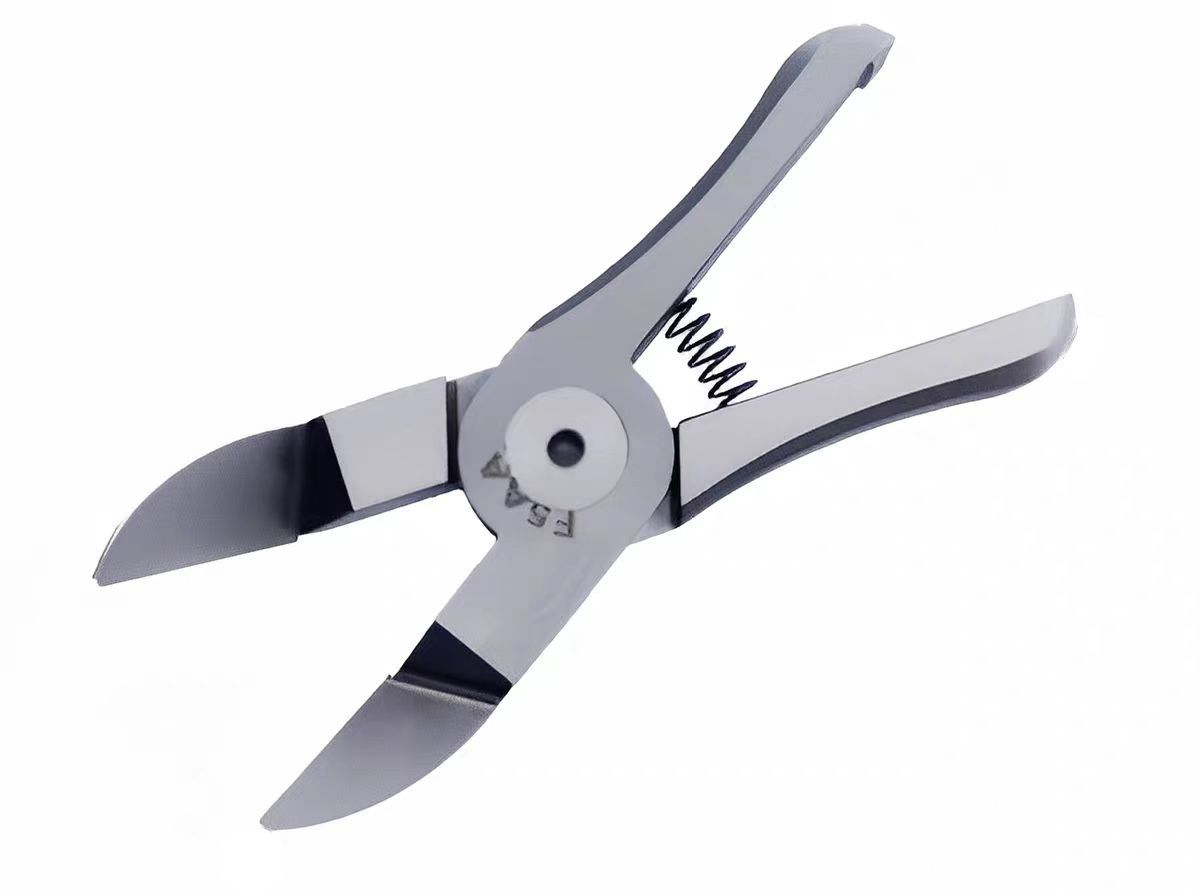

R blades for plastic

The pneumatic scissors are an efficient and precise processing tool for the flow ports in industrial automation, especially in the field of injection molding. It is usually a key component of the end effector (EOAT, End Of Arm Tooling) of the mechanical arm and is used to automatically trim the gate (orifice) of plastic products.

Product Details

                          Model NO. Size(mm) Weight(g) Material Application model
  a b c d e L
0
LA5-F5AB
56 12 30 25 15 110 160 Special alloy steel LA5-A20/LA5-B20/LA5-C20/LA5-A25/LA5-B25
0
LA5-F9P
66 17 15 37 16 150 440 Special alloy steel LA5-A30/LA5-B30/LA5-C30
0

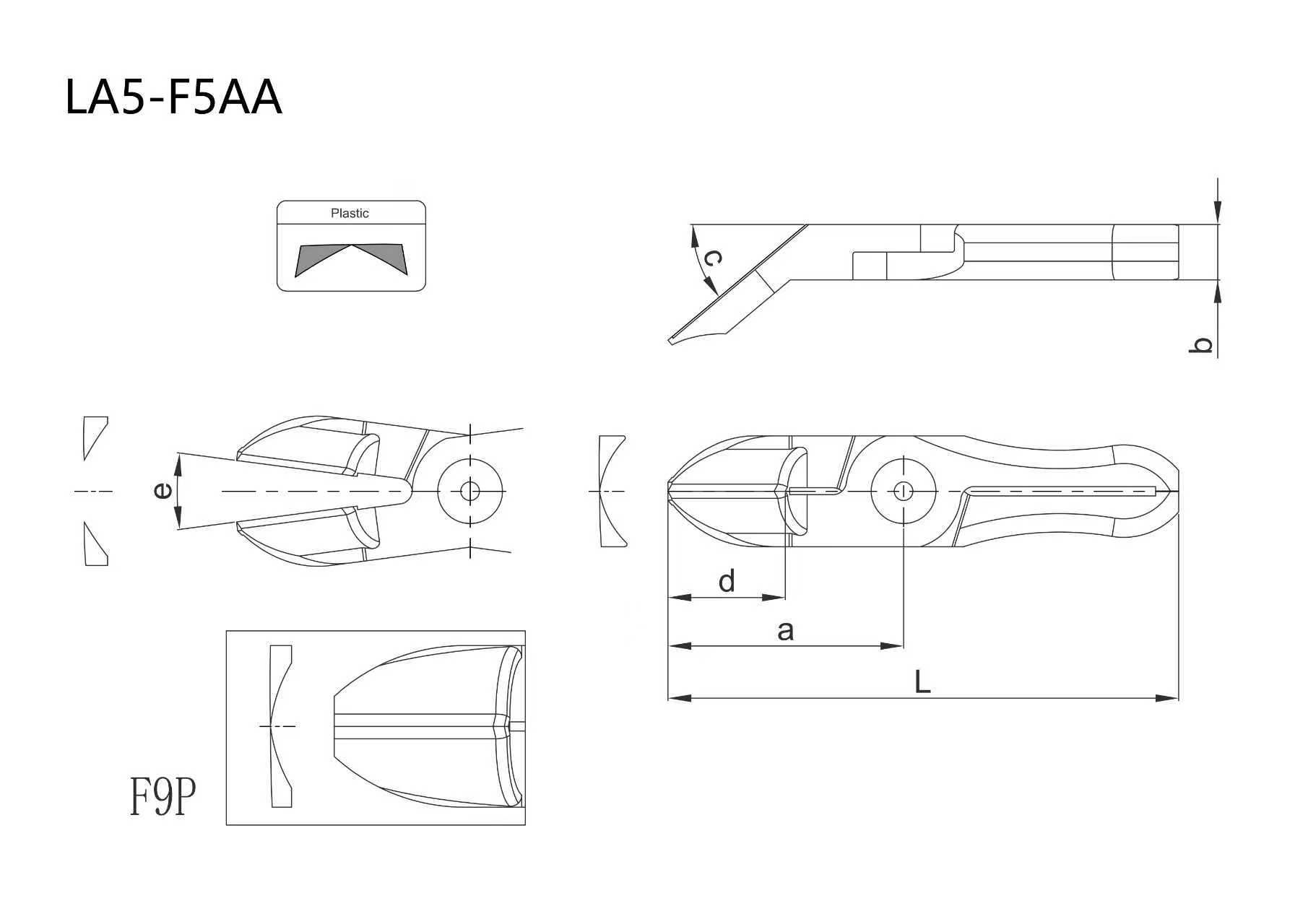

LA5-F5AA
52.3 12 40 27 14 112.3 195 Special alloy steel
